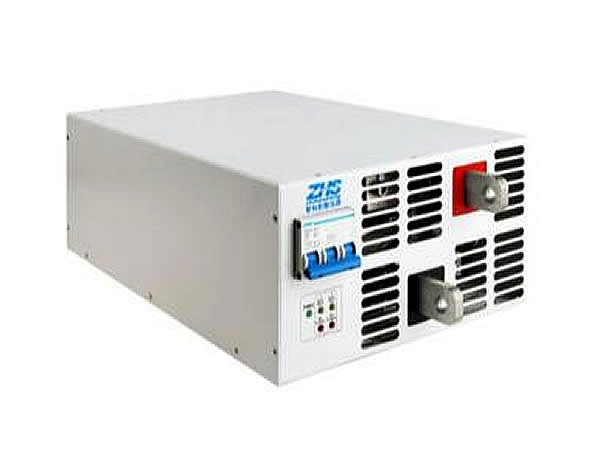

ZHS-M air cooling series high frequency switching power supply
  • ZHS-M air cooling series high frequency switching power supply
  • ZHS-M air cooling series high frequency switching power supply
ZHS-M air cooling series high frequency switching power supply

Rectifier features:
●Ultra-low ripple coefficient, high current accuracy, high coating uniformity.
●High frequency 15.625KHZ~125KHZ, small size, light weight and beautiful appearance.
●High power factor, high efficiency, product energy saving and environmental protection.
●The power module adopts the advanced Japanese imported potting and sealing design method to resist acid and alkali, and can be directly placed in every corner of the electroplating tank.
●Built-in soft start, over temperature, over voltage, overload, short circuit and current limit protection functions.

Hotline:0769-85638519

Product details

Technical parameters:

input voltage

Three phase AC380V ± 10% /, 50Hz ~ 60Hz

Current stabilizing accuracy

≤1%~0.5%

Voltage stabilizing accuracy

≤1%

power factor

≥0.95

Rated efficiency

≥92%

Ripple coefficient

≤1%~0.5%

work environment

-10℃~45℃

Storage temperature

-20℃~50℃

Insulation class

Class A

Cooling mode

Air cooling

Operating load

48 hour operation at full load

Environmental requirements

RoHS compliant

Safety regulations and standards

Comply with EU CE standards: 2006 / 95 / EC, 2004 / 108 / CE

IP protection class

IP33

Product details:

Rectifier features:

● ultra low ripple coefficient, high current precision and high coating uniformity.
● high frequency, 15.625kHz ~ 125kHz, small volume, light weight and beautiful appearance.
● high power factor, high efficiency, energy saving and environmental protection.
● the power module adopts advanced sealing design imported from Japan. It is acid and alkali resistant and can be placed directly in every corner of the electroplating tank.
● built in soft start, over temperature, over voltage, overload, short circuit and current limiting protection functions
● the control system adopts international RS485 network control, PROFIBUS DP, network control, device net, ad control and standard 4 ~ 20mA control functions.
● modular automatic current sharing function is adopted for output to ensure the improvement of electroplating process quality
● the ultra-low ripple and high frequency design scheme can effectively improve the ultra-high frequency switching power supply required for the configuration of vertical continuous plating (VCP) line, and the coating uniformity can reach more than 96%.

Product specification:

Rated transmission

Output voltage

Rated transmission

Outgoing current

Overall dimension

Length (mm)

Width (mm)

Height (mm)

5V

600A

four hundred and fifty

two hundred and eighty

one hundred and fifty-three

6V

600A


M3000s5 air cooled   5V/600A

Operating system: remote control

※ output current of different models shall be made according to customer requirements ※
