Technical parameters:
|
input voltage
|
Single phase AC220V ± 10% /, 50Hz ~ 60Hz
|
|
Current stabilizing accuracy
|
≤1%~0.5%
|
|
Voltage stabilizing accuracy
|
≤1%
|
|
power factor
|
≥0.95
|
|
Rated efficiency
|
≥92%
|
|
Ripple coefficient
|
≤1%~0.5%
|
|
work environment
|
-10℃~45℃
|
|
Storage temperature
|
-20℃~50℃
|
|
Insulation class
|
Class A
|
|
Cooling mode
|
Air cooling
|
|
Operating load
|
48 hour operation at full load
|
|
Environmental requirements
|
RoHS compliant
|
|
Safety regulations and standards
|
Comply with EU CE standards: 2006 / 95 / EC, 2004 / 108 / CE
|
|
IP protection class
|
IP33
|
Product details:
Rectifier features:
● ultra low ripple coefficient, high current precision and high coating uniformity.
● high frequency, 15.625kHz ~ 125kHz, small volume, light weight and beautiful appearance.
● high power factor, high efficiency, energy saving and environmental protection.
● the power module adopts advanced sealing design imported from Japan. It is acid and alkali resistant and can be placed directly in every corner of the electroplating tank.
● built in soft start, over temperature, over voltage, overload, short circuit and current limiting protection functions.
● the control system adopts international RS485 network control, PROFIBUS DP, network control, device net, ad control and standard 4 ~ 20mA control functions.
● modular automatic current sharing function is adopted for output to ensure the improvement of electroplating process quality.
● the ultra-low ripple and high frequency design scheme can effectively improve the ultra-high frequency switching power supply required for the configuration of vertical continuous plating (VCP) line, and the coating uniformity can reach more than 96%.
Product specification:
|
Rated transmission
Output voltage
|
Rated transmission
Outgoing current
|
Overall dimension
|
|
Length (mm)
|
Width (mm)
|
Height (mm)
|
|
4V
|
280A
|
four hundred and fifty
|
one hundred and eighty-six
|
one hundred and fifty
|
|
300A
|
|
5V
|
200A
|
|
300A
|
|
6V
|
100A
|
|
250A
|

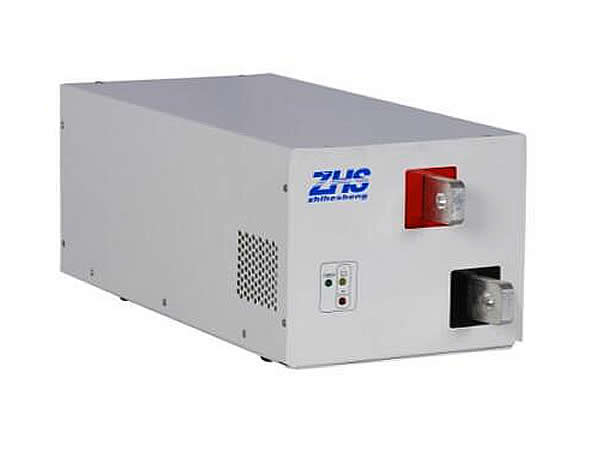

M1000s5 air cooled 5V/200A
Operating system: remote control
※ output current of different models shall be made according to customer requirements ※
